1. Crude oil Refining methods:
1．physical refining
2．chemical refining
3．chemical-physical refining
2. Advantages of our crude oil refining plant:
? High oil yield , obvious economic benefit .
? low Residual oil rate in the dry meal .
? Improving the quality of the meal .
? Low processing cost , high labor productivity.

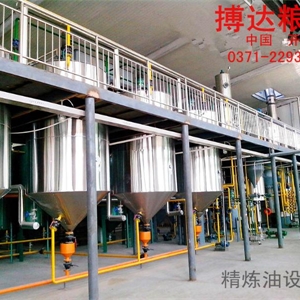

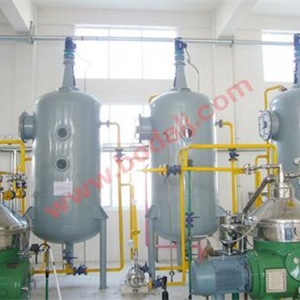

3. The detail information of crude Oil refining :
? The neutralizing tank is used for acid for acid,alkali refining or rinse
? The decoloring tank is for bleaching grease
? The deodorizing tank is sued for deodotization tank
? The conducting oil furnance provide the heating for production
? The vacuum pump provide vacumm for bleaching , deodorization which is can reach 755mmkg
? The air compressor can dry the bleached clay
? The air press is for filter clay
? The stream gererator can gererate stream distillation
? The quality of die refined oil reached to the standards for edible oil and santitation by neutralization usingphosphoric acid, water washing, bleaching and stean refining.
4. Specification:
Main economic technical parameters
Steam consumption
450KG/T oil
Electric consumption
28Kwh/T oil
Phosphoric acid
2~3 kg/T oil
Circulating water cooling water yield
150m3/H
Bleaching earth consumption
5~50Kg/T oil
Waste bleaching earth oil content
<35%
Deodorization loss consumption
≤0.5%
