1. Introduction of Crude Rice Bran Oil Refinery Machine:
Crude oil→filter→mix→reactor→mix→reactor→centrifugal separation→oil residue
↑ ↓
Phosphoric acid hot water→mix
↓
degumming oil←cooler←dry←centrifuge separation ← mix ← alkali liquor
↓ ↓
vacuum steam jet pump←steam citric acid
↓ ↓

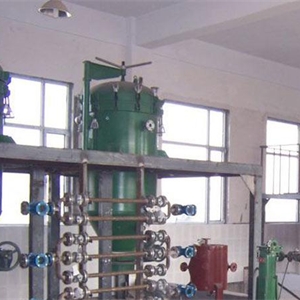

bleaching earth→mix→decoloring→filter→decoloring oil→mix→heat
↓
refined oil←filter←cool←deodorizing←vacuum
2. Features of Crude Oil Refinery Machine:
? Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good extraction effect;
? The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;
? The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level, which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.
? The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal, improve the miscella concentration and save energy by reducing the evaporation capacity.
? The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella, improve the quality of crude oil and reduce the evaporation system scaling.
3. Specification:
Main economic technical parameters | |
Steam consumption | 450KG/T oil |
Electric consumption | 28Kwh/T oil |
Phosphoric acid | 2~3 kg/T oil |
Circulating water cooling water yield | 150m3/H |
Bleaching earth consumption | 5~50Kg/T oil |
Waste bleaching earth oil content | <35% |
Deodorization loss consumption | ≤0.5% |
